DESCRIPTION

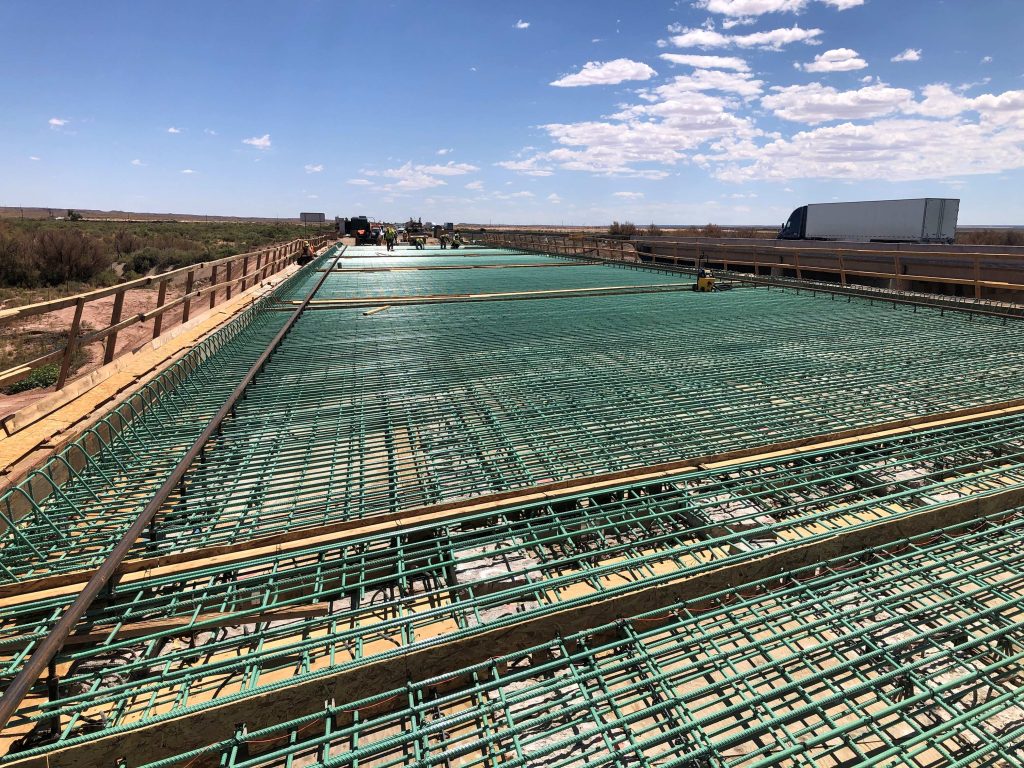

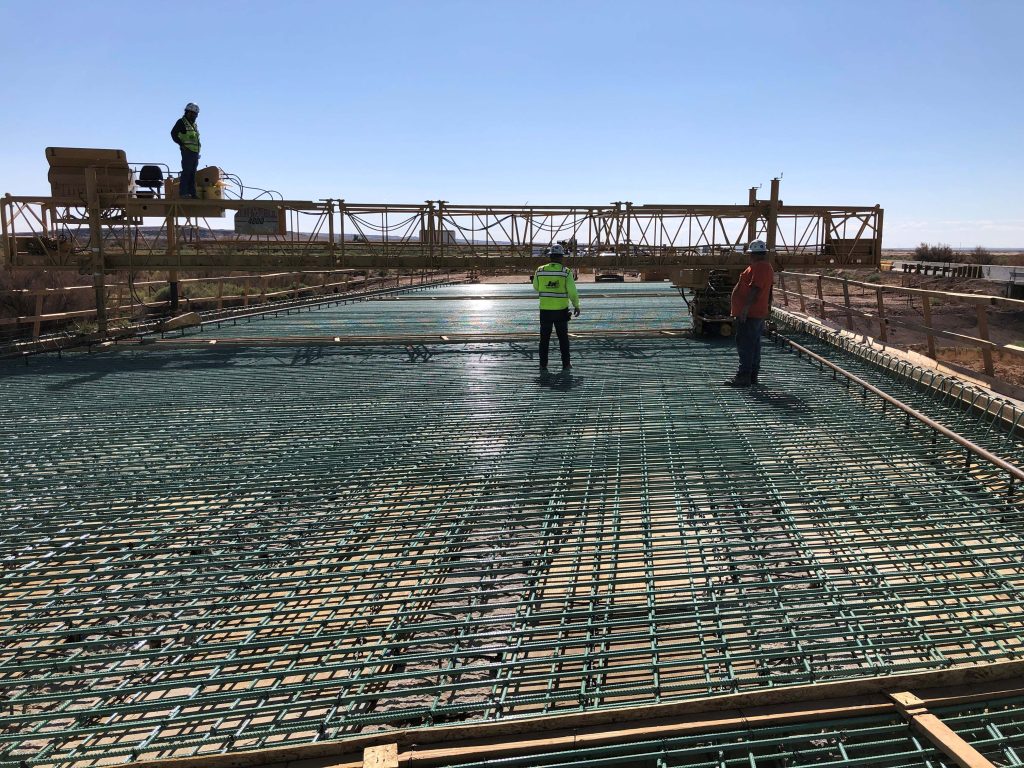

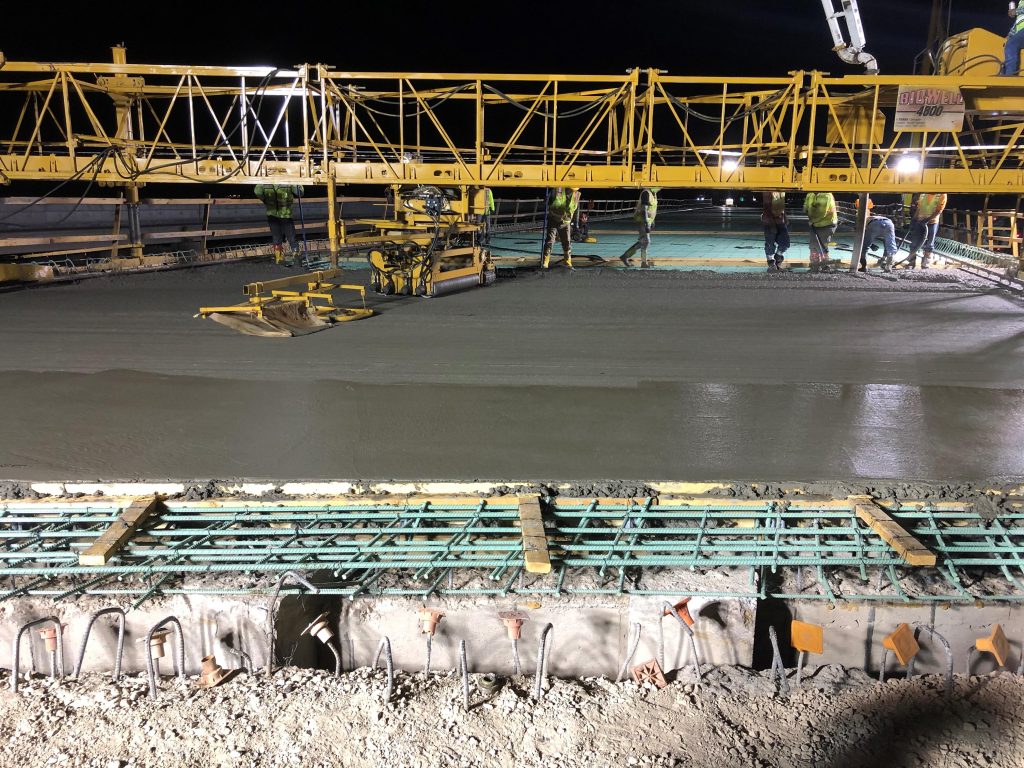

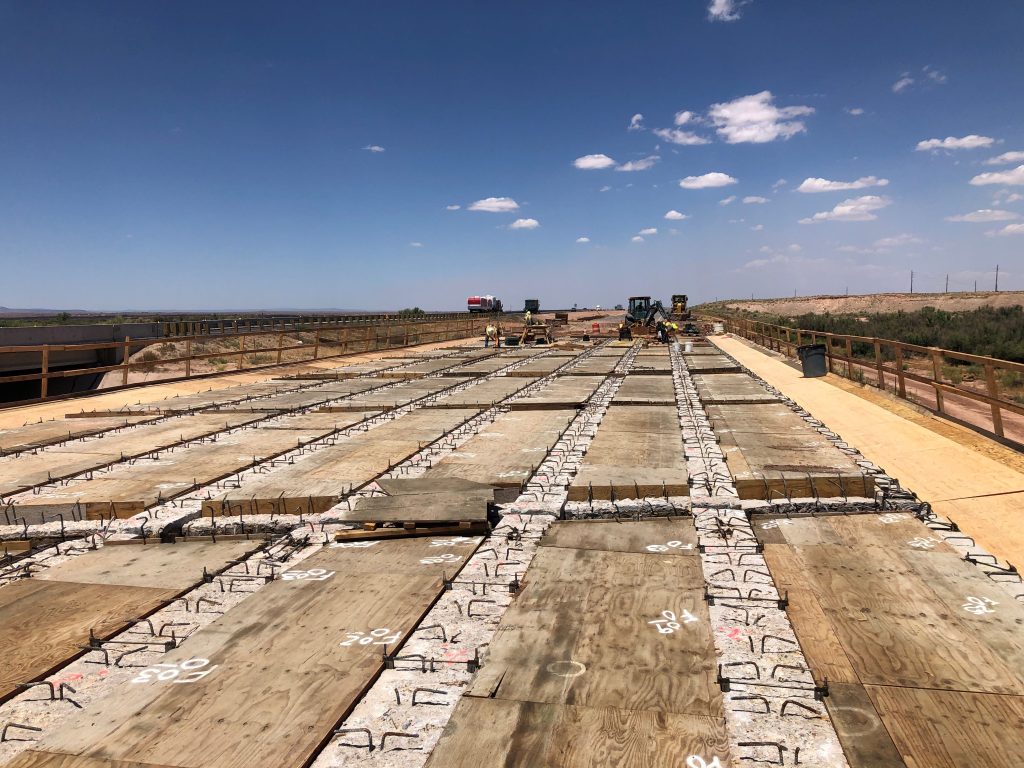

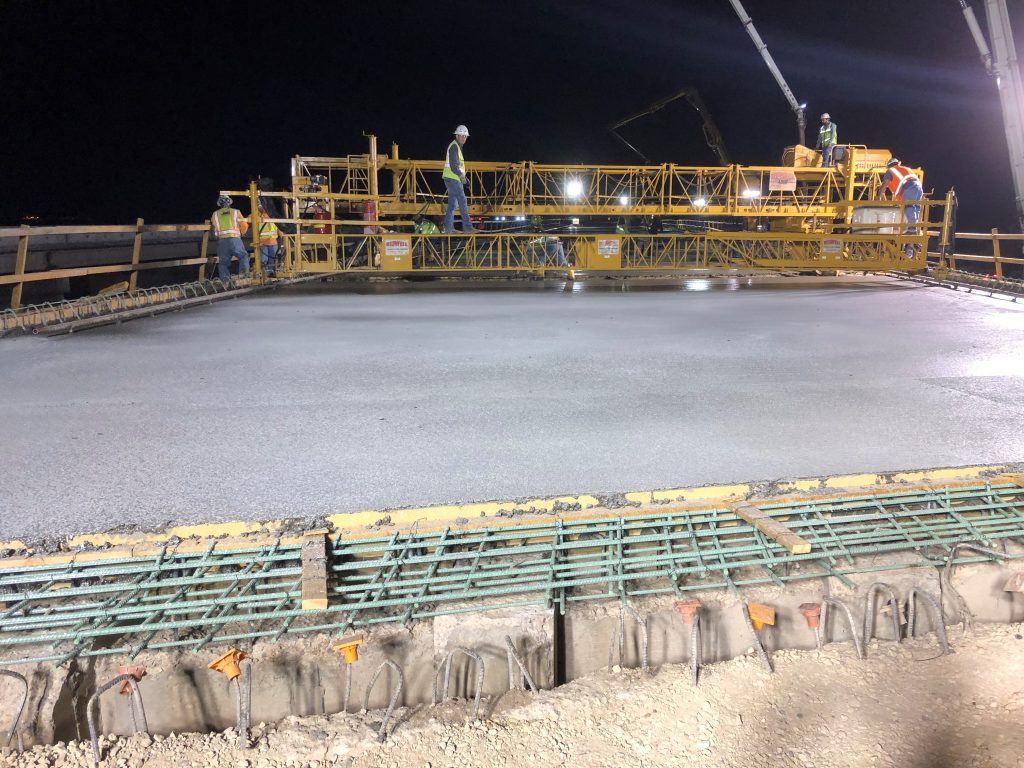

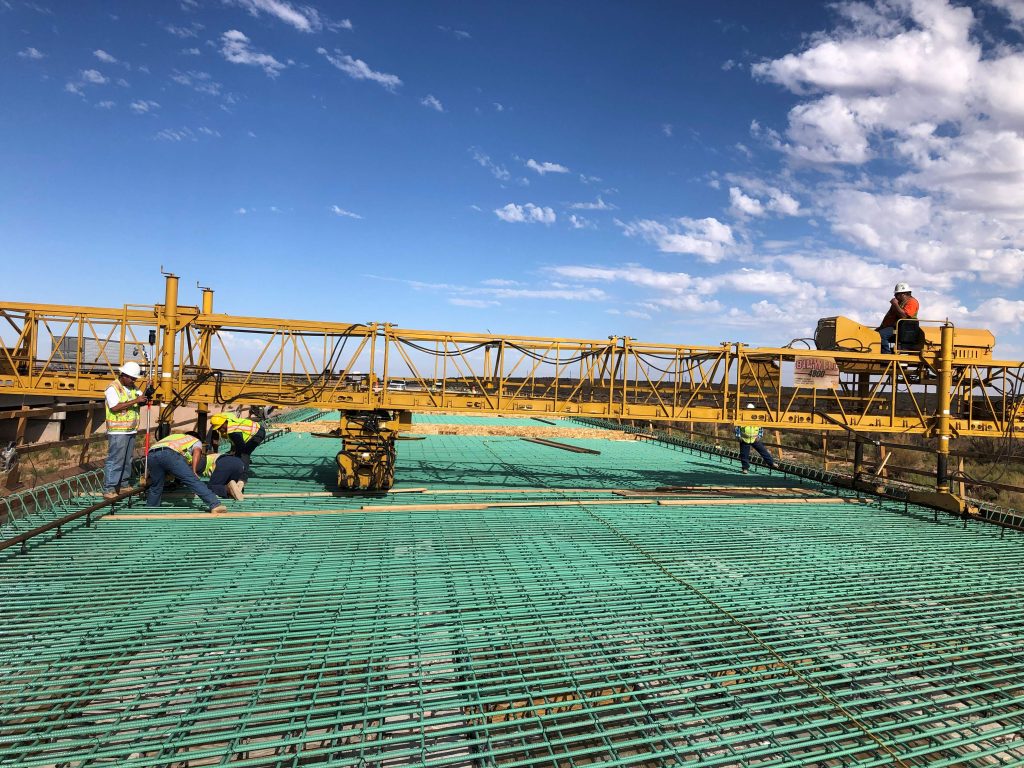

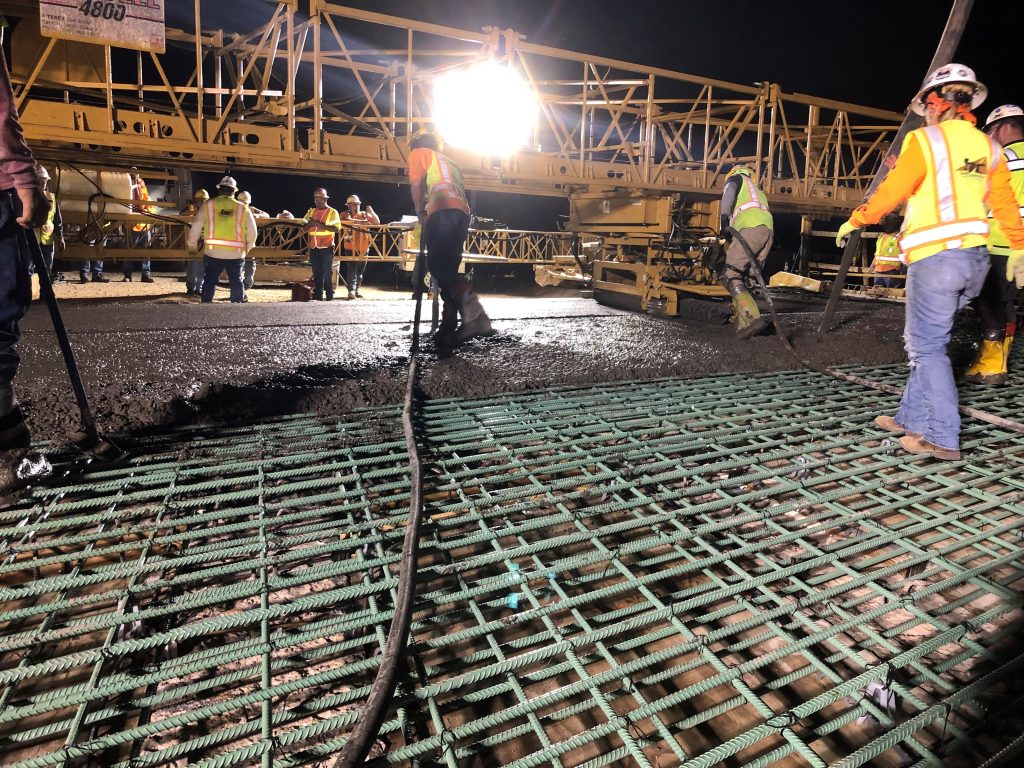

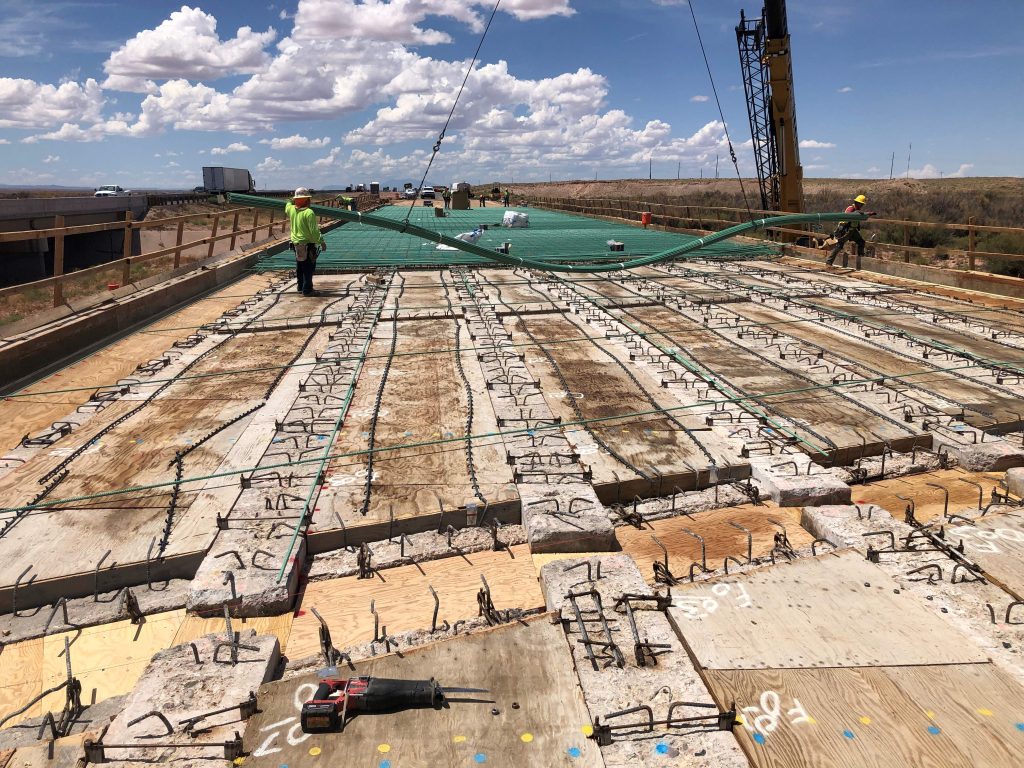

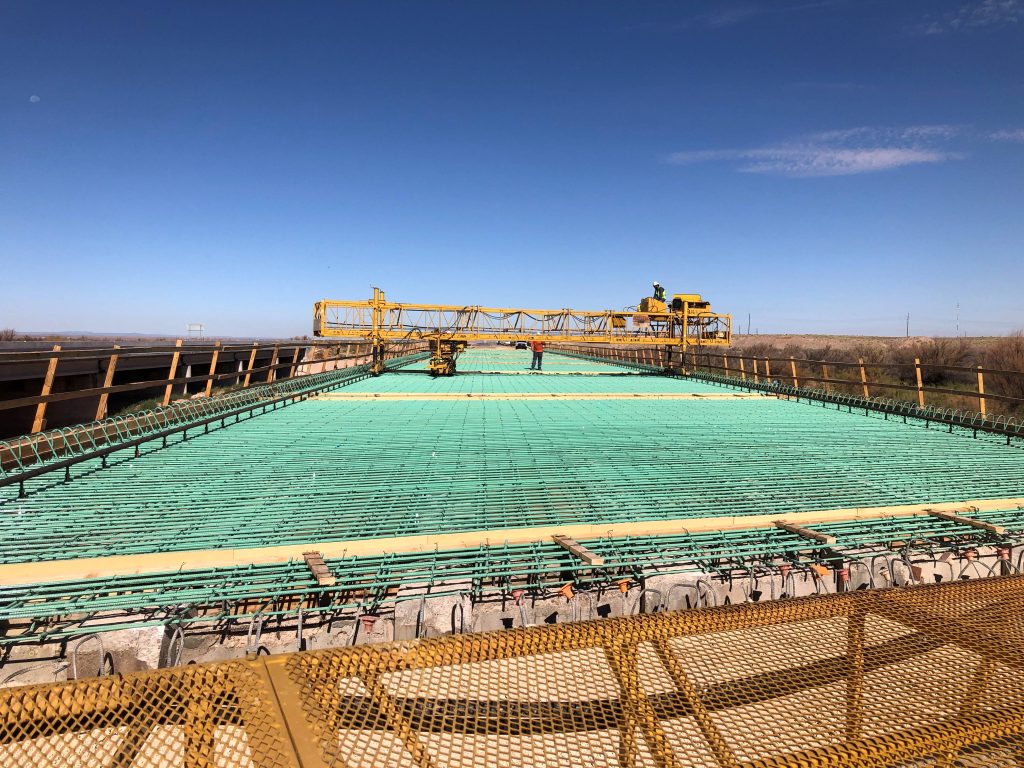

This major I-40 bridge replacement project included the complete superstructure removal and replacement of two eight-span, 400’ long by 44’-10” wide bridge decks. Located five miles east of Winslow, Arizona, construction occurred over two phases with a winter shutdown to mitigate impacts to I-40. Temporary crossovers were built within the I-40 median for both phases to facilitate construction while maintaining both directions of I-40 as each independent bridge structure was reconstructed.

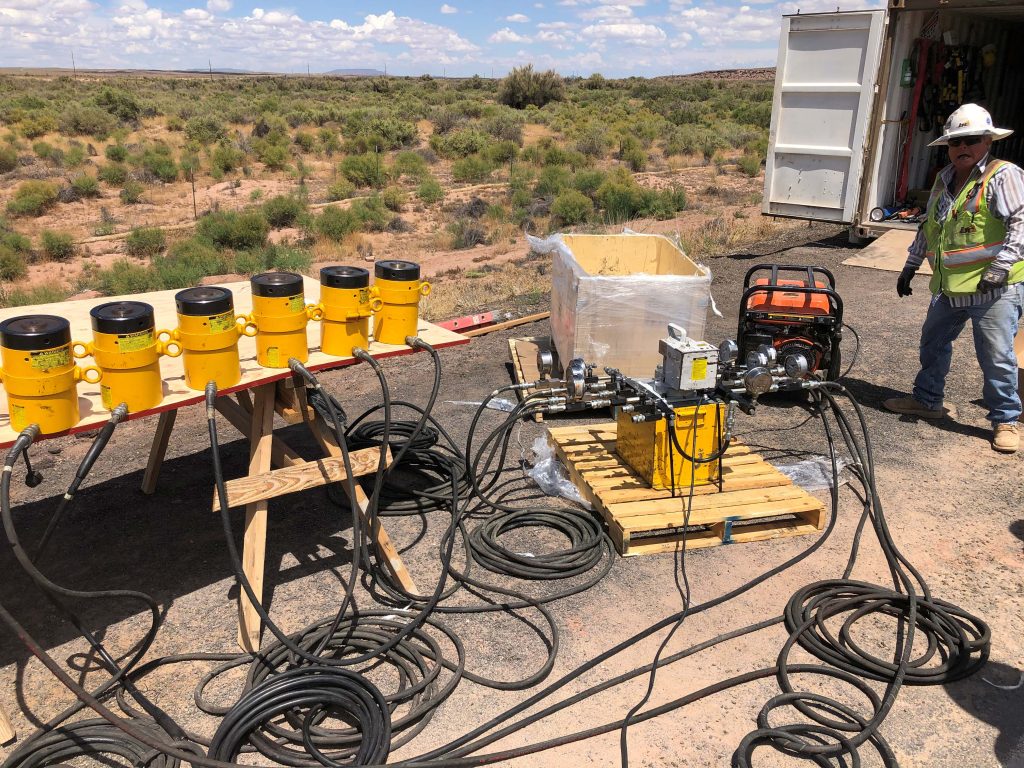

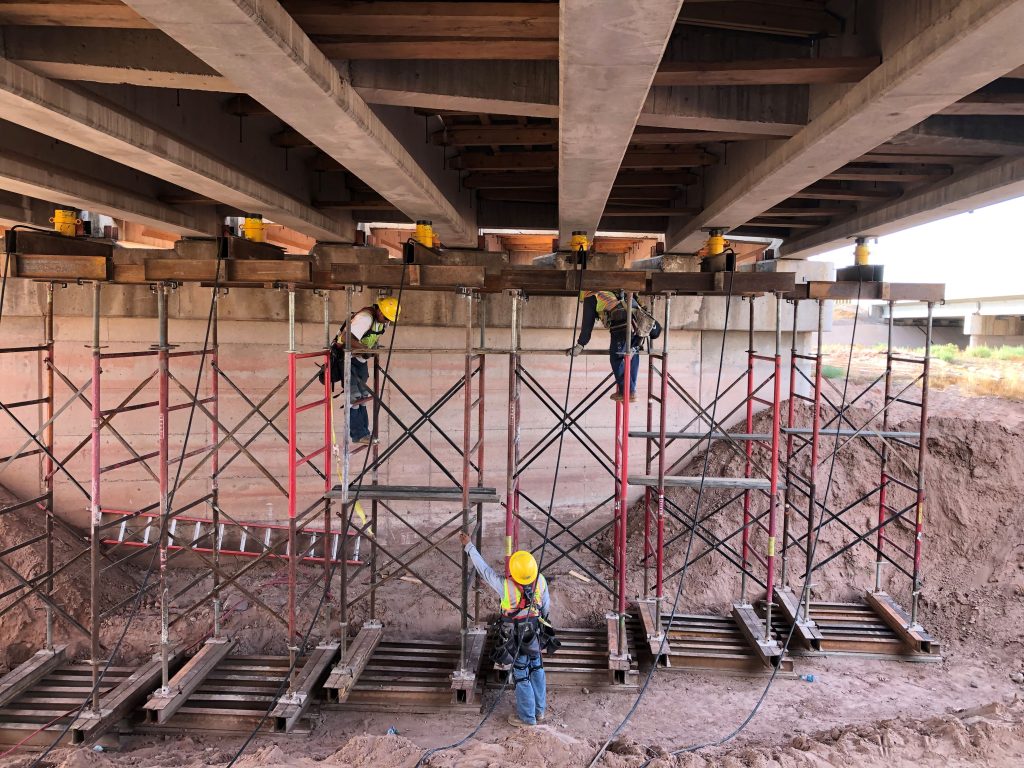

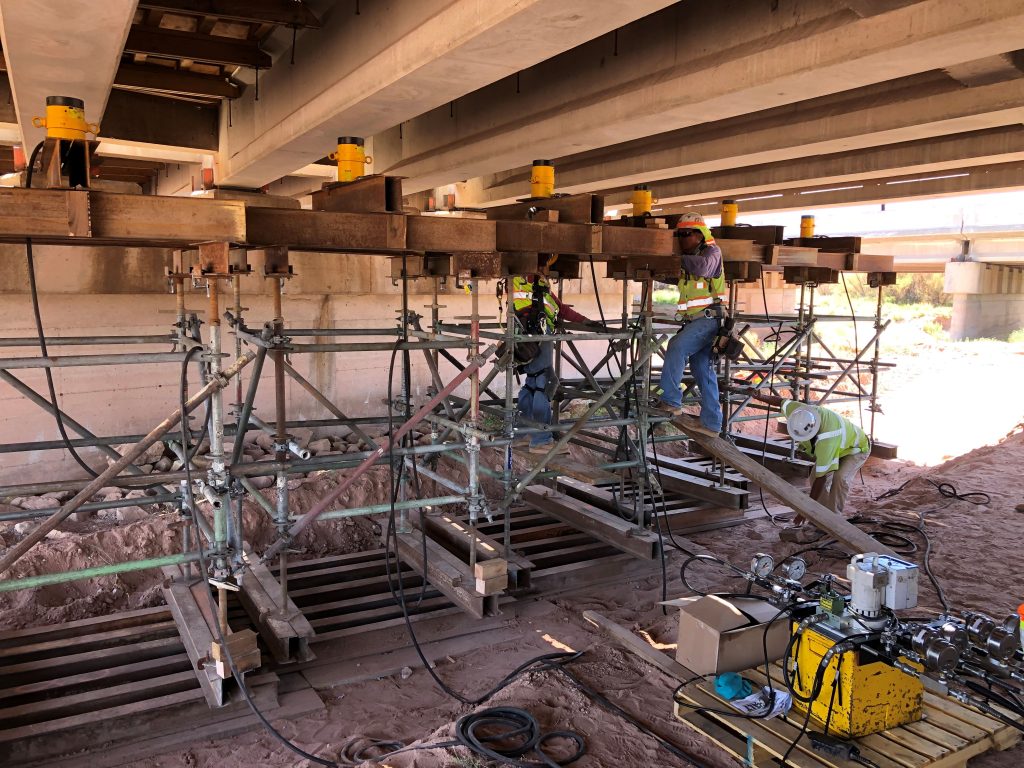

The project also involved the simultaneous hydraulic jacking of eight AASHTO Type II and 6 post-tensioned girders to replace parabolic rocker bearings and reset the keeper plates. Additionally, 18 new expansion joints were installed, and substantial substructure repairs were performed.

SCOPE

• Two new 400’ x 44’-10” bridge decks on I-40
• Parabolic bearing replacement
• Bridge jacking
• 18 expansion joints
• 1,760 LF 34” F-Shape bridge parapet

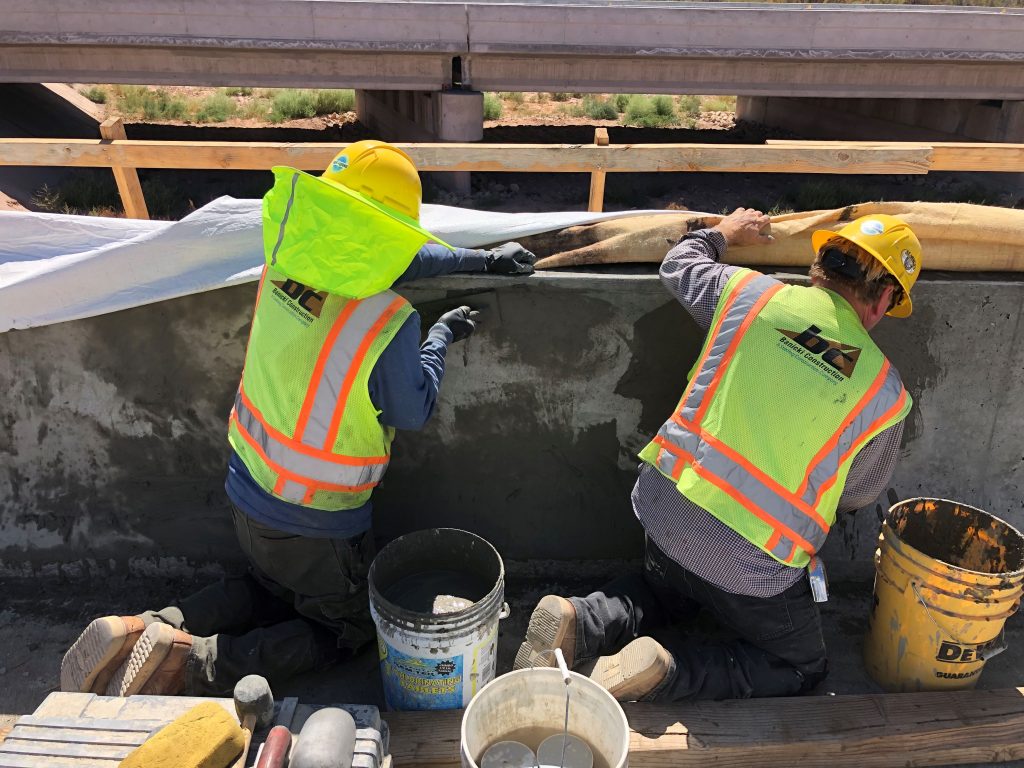

• Substructure repairs

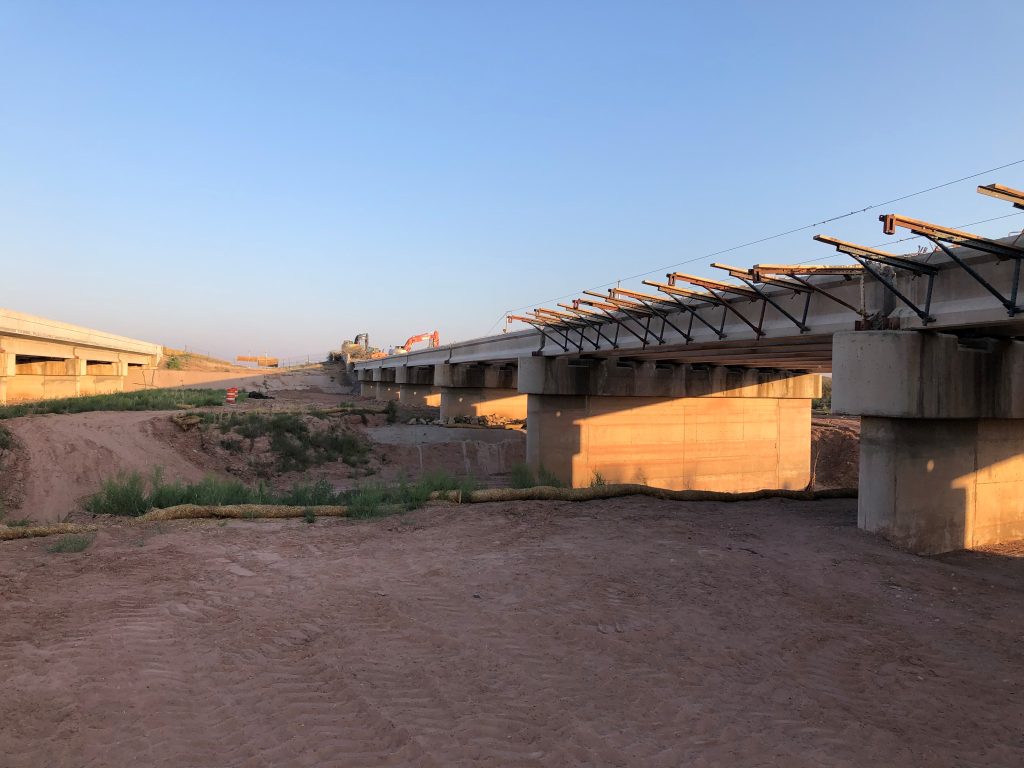

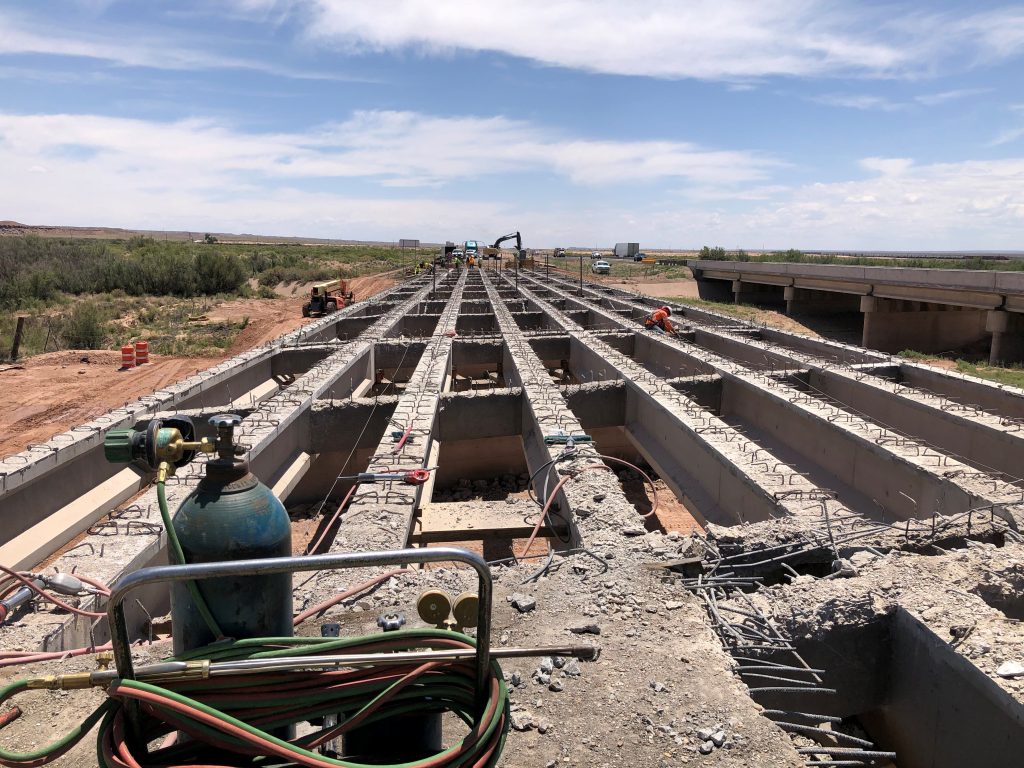

• Existing bridge superstructure demolition
• 7,479 CY ABC
• 7,995 TN AC pavement
• AC friction course
• Guardrail
• Shotcrete slope protection
